To enter console commands, be certain that you do not currently have a chat field selected, otherwise the command will go to chat instead of being executed. If the command is being entered properly, it will display in the lower left corner of the main window as it is typed in.

The leading : on the commands is actually the way to activate the console mode. Enter to commit a command, and Esc to back out of console mode.

The console remembers the used commands (resets at character login). Browse its history with arrow-up & arrow-down.

Camera Control
:cam ortho <option> Sets the default isometric game view.

Camera follows the player character (PC) after the PC has moved a certain distance from the center of the screen. The camera can also be moved by middle click and dragging.

Available options:

  • -i: Or none. The default. Fixed diagonal angle views. (Active for 'Home' view and farther away. Not active when zooming in from 'home' view)
  • -f: Free rotation viewing angle. (Disabled diagonal angle locks)
  • -e: ...(Unclear).
  • -n: ...(Unclear).

Left & right arrow keys rotate to next diagonal angle in that direction.
Up & down arrow keys zoom in and out.
Home key reset the view to its starting default.

:cam bad Free 3D view camera. You can rotate and pitch around using middle click and dragging the mouse. Can also use <ctrl>+arrow keys to move the camera; should work with the "ortho" camera, too. "Home" key resets camera to default position.(doesn't work here anymore. not implemented in related cam code)

Known bad-cam bug: Quest-giver marker can point in the wrong/opposite position of where they really are. One needs to look strait down (90° to ground) to view/preview its guarantied correct direction.

:cam follow Camera rotates around to follow the character. Note that the movement is slow and only starts rotating a second or so after a character moves.
Others
:lo Will Log Out of current session
:act lo Will log out of current session only after a check for any conditions that would cause the character to remain in the world.
:q Will close the client
:audiobuf <size> Default audio buffer is 1024 and looks like ":audiobuf 1024". If you've got sound issues try to add more to buffer. Try starting by doubling it to 2048. Setting it too high will also cause issues. (Another contributor says 4096-8192 are the best options.)

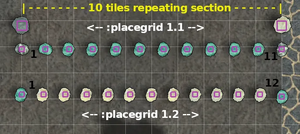

:placegrid <size> Set the grid size for placement of objects with the default grid unlocked (placing while holding ctrl). The number must be an integer between -2147483648 and 2147483647, and effectively represents the amount of snap points between each tile on both axes, centered on tile corners (as opposed to tile centers for default placement). A value of 1 would allow a single snap point (tile corners), 2 allows snap points every half tile, 3 every third of a tile, 4 every fourth of a tile, and so on.

This can be used to place objects in such a way that their hitboxes line up perfectly, saving the maximum amount of space. Numbers from 1 to 100 are the only useful settings for most purposes. The limits are simply the minimum and maximum allowable quantities for a 32-bit integer.

:hz <n> Cap max FPS to n
:bghz <n> Cap max background frame rate to n. Default is 5.
:stats <on/off> Shows some general statistics about the client; toggle "on" or "off"
Graphics Debugging
:gl meshmode vao Default rendering mode
:gl meshmode mem ??
:gl meshmode dlist Another diagnostic mode for some users that may crash on the default rendering mode
:gl wsurf <n> Change deep water color from dark blue (n=1) to light blue (n=0). The latter can help performances
Others(2) (Questionable usefulness)
:die Crashes the client. (assumed to be intentional until proven otherwise)
